Lighting system is equipped with retina protection device, -2° independent red reflex intensifier, flter of infrared. X/Y system automatically controllable, and the moving range of X/Y:50mm. The instrument adopts Gasspringcounterbalance at every fixed point. The performance is easy and fexible while stable and reliable.
服务热线：0086512-66580181/0182
在线聊天

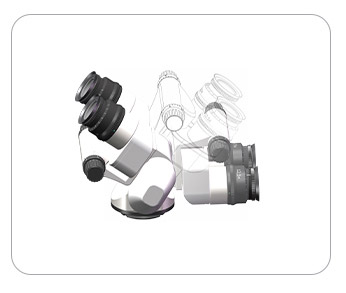

Binocular tube tilt angle 0~180°
OPTICS SYSTEM
Optics type | Single operator applicable |
Eyepieces | 12.5X |
Diopter adjusting range | -7D~+7D |
Objective | F=200mm |
Working distance | 190mm |
Magnification of Main Optics system | ZOOM 6:1 motorized |
Magnifications | 4.1X~24.6X |
Field diameter | 8mm~50mm |
PD adjustable range for Binocular tube | 51mm~75mm |
Angle adjustable for Binocular tube | 0°~180° |
Focusing | 50mm |
Focusing speed | ≤2mm/s |
Filters | Main illuminator: Retina protection flter, Red-free GG435 blue-blocking; Red Refexilluminator:20%light attenuation |

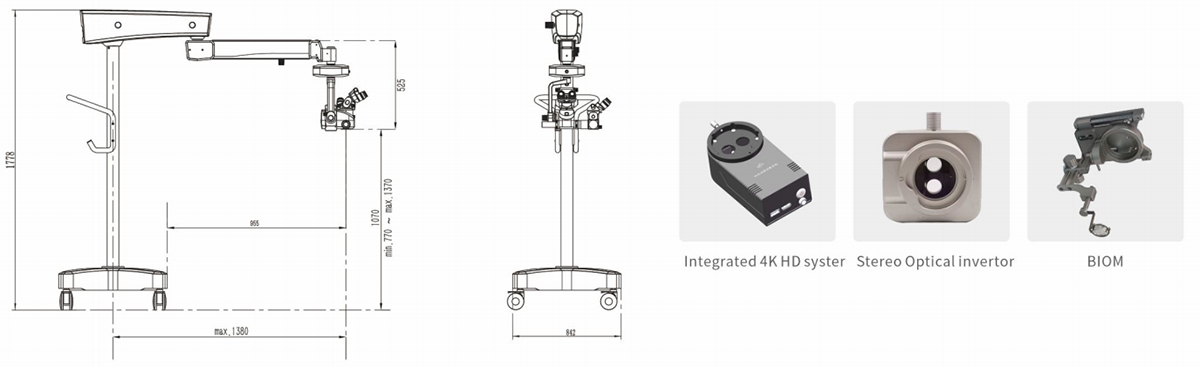

FLOOR STAND
Foot wheels | 4x100mm |
Weight | Approx185kg,fully microscope system |
Range | Extension 1380mm(max.) |
Balancing | Gas spring |
XY Unit | 50 mmx50 mm, motorized with automatic reset |
XY moving speed | ≤2mm/s |
Tilt driver | Manual,+15°/-50° |
Turning range | Horizontal arm:360° Balance arm:+135° XY unit:±135° |
ILLUMINATION
Main light | IntegratedLED,3500K,CRI>90 |
Red refex illumination | -2°coaxial,LED,,3500K CRI＞85 |
ELE CTRICA L DATA
Voltage input | 100-240 V~,50/60 Hz |
Fuses | 250V,10A |
ElectricalSafety Standards | IEC60601-1:2012, Class I |
ACCESSORIES
Binocular tubes | Inclined 45°Binocular 0°~180°Binocular |
Beam splitter | 50%/50% 30%/70%* |
Video Adapter | Compatible forC-mount video cameras |
Video Camera | Digital camera system: HD* |
Video Recording | Integrated 4K HD system |
Integratedlmage system | 4K HDimage system with output HDMI |
Wide-angle Observationsystem | BIOM*，EIBOS |
Inverters | SDl* |
Footswitch | 12 or 14-function with 2-cross pedals |
Asepsis | Disposable sterilized surgery drapes*,sterilizable components for drive knobs |
*打星号的项目非本公司生产
